Light Duty CNC Metal Wire Mesh Weaving Loom High Precision Global Support
1. Light Duty Metal Wire Mesh Loom Introduction
Engineered for accuracy and uptime, the CNC Wire Cloth Loom uses industrial PLC control with servo drives to synchronize critical motions. The platform supports plain, twill and Dutch patterns, and typical ranges include fine wire capability down to 0.01 mm (material dependent). A stable mechanical base and balanced drivetrain minimize vibration for cleaner selvedges and flatter cloth.
2.Light Duty Metal Wire Mesh Loom Details
For wire-mesh weaving, the loom’s closed-loop tension regulates density as servo-coordinated beat-up produces smooth surfaces and tight tolerance apertures. Recipe libraries store validated parameter sets by mesh specification and wire material, making changeovers a guided workflow rather than trial and error. The result is high first-pass yield and predictable quality across extended runs.
3. Light Duty Metal Wire Mesh Loom Key Features & Advantages:
· Precision Weaving: Superior tension control ensures exceptional mesh uniformity, allowing for accurate and stable weaving of fabrics within a range of 40 to 400 mesh using standard wire diameters.
· High Efficiency: With a maximum operational speed of 120 rpm, it boosts production efficiency by over 70% compared to conventional machinery.
· User-Friendly Operation: Critical parameters like mesh count and tension settings are digitally set and stored via a touch-screen interface, ensuring simple operation, precise adjustments, and excellent repeatability.
· Versatility: Capable of weaving various complex patterns, including but not limited to Plain Weave, Twill Weave, and Dutch Weave.
· Enhanced Productivity: The integrated Continuous Web Removal (Uninterrupted Doffing) Systemand digital length display significantly reduce non-productive auxiliary time, maximizing overall equipment effectiveness (OEE).
· Reliability & Durability: Designed for longevity and stable operation, it features high-quality components such as a Bearing-Type Crankshaft, making it suitable for sustained continuous production.
4.Light Duty Metal Wire Mesh Loom Parameter:
| Feature Category | Light-duty Loom (Model B) | Heavy-duty Loom (Model D) |
| Mesh Width | 1300mm 1600mm | 1300mm 1600mm |
| Harness System | Positive (Overhead) | Negative (Bottom Cam) |
| Web Removal Method / Doffing Method | Continuous Web Removal or Direct Winding | Continuous Web Removal or Direct Winding |
| Wire Diameter Range | Continuous Web Removal | 0.01 - 0.2 mm | 0.1 - 0.6 mm |
| Direct Winding | 0.03 - 0.2 mm | 0.1 - 0.3 mm |
| Mesh Count Range | Plain Weave | 30 - 500 mesh/inch | 10 - 100 mesh/inch |
| Twill Weave | 30 - 635 mesh/inch | 20 - 100 mesh/inch |
| Dutch Weave | 100 - 2300 mesh/inch | 30 - 500 mesh/inch |
| Beating-Up Frequency | Max. 120 r/h | Max. 100 r/h |
| Motor Power | 2.2kw | 2.2kw |
| Standard Configuration | Crankshaft Type | Bushing Type |
| Side Frames | Casting Wall Plates |
| Tension System | Tension Sensor |
| Rapier Head Type | Carbon Fiber |
| Drive Type | Fully Digital Control (CNC) |

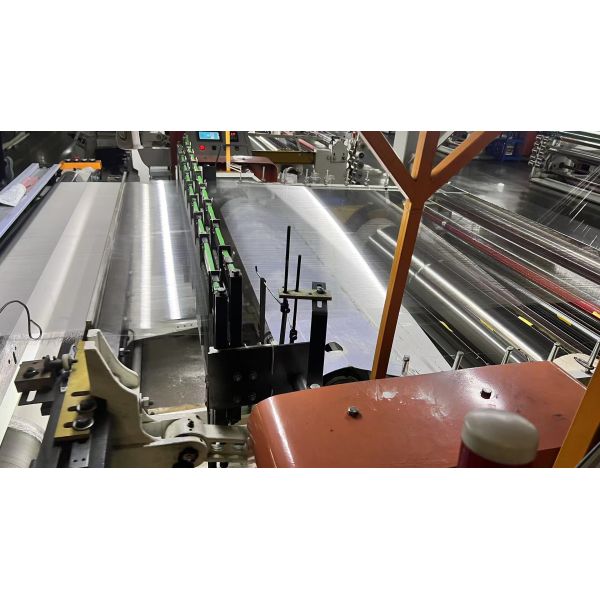

6.Light Duty Metal Wire Mesh Loom Detailed Images:
